See below for generating and downloading a CAGW (CA Gateway) credential in PKCS#12 format.

To create a CAGW credential

  1. Open the following URL in a Web browser.

    https://<machine>/v2/

    Where <machine> is the IP address or domain name of the machine hosting Cryptographic Security Platform.

    Do not omit the ending forward slash "/" on this URL.

  2. Log in to the Management Console as the user described in Creating partition administrators.
  3. In the Select Partition dialog, select the partition on which to manage certificate authorities and certificates.
  4. Click Select.
  5. Click User Management in the sidebar and select the CAGW Credentials tab.
  6. Click Create CAGW Credential.
  7. Enter an identifier and a friendly name for the new credential.
  8. Click Create and wait while the new credential automatically downloads.
  9. Check the expiration date of the new credential (one year after the generation date).

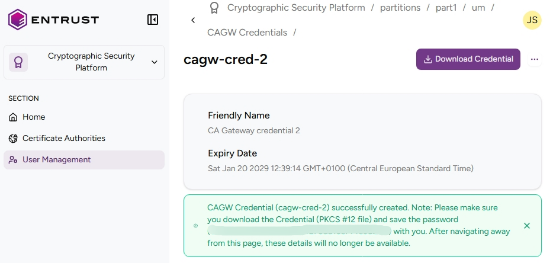

  10. Copy the password displayed in the credential details page.

    As indicated in the warning message when leaving this page, you won’t be able to copy the credential password again. If you don’t copy this password now, you will be forced to generate a new credential.
