See below for creating a root Certificate Authority (CA) with a self-signed certificate issued by the Certificate Authority solution.

To create a root Certificate Authority instance

1. Open the following URL in a Web browser.

   https://<machine>/management-console

   Where <machine> is the IP address or domain name of the machine hosting Cryptographic Security Platform.

2. Log in to the Management Console as one of the users created in Creating Certificate Authority tenants. This user will be the tenant of the new root Certificate Authority.
3. In the content pane, click Manage Solution under Certificate Authority (CA).

4. Select Operations in the sidebar.

5. Select an organization under Organization List.

   See Managing organizations for how to create or join an organization.

6. Click New under Certificate Authority.
7. Configure the following settings.
   • CA Type
   • CA ID
   • CA Key Type
   • Certificate Profiles
   • Expiration Date
   • Attributes
   • Auditors
   • Administrators
8. Click Submit to create the new Certificate Authority.

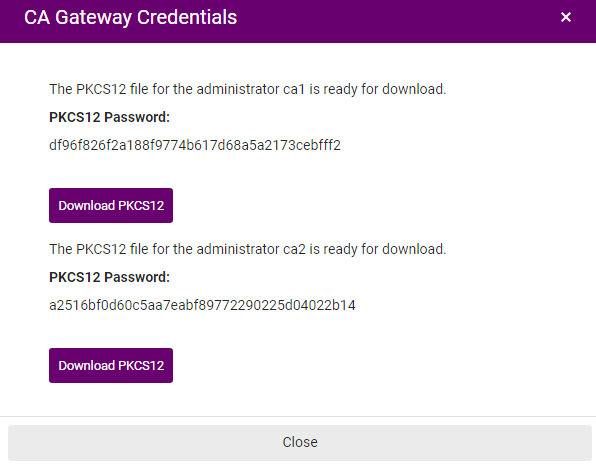

9. Copy the password of the client authentication PKCS #12 created for each new auditor or administrator (if any).




10. Click Download PKCS12 to download the PKCS #12 files. Each PKCS #12 includes:
    • The certificate of the CA that issues the client certificates. This certificate is also available in the Certificate Authority for CA Gateway Clients tab.
    • A client certificate.
    • The private key of the client certificate.
11. Save the PKCS #12 files and passwords in a secure place, as you cannot obtain them later.

CA Type

Click ​Root Certificate Authority.

Mandatory: Yes.

CA ID

Type a unique identifier for the new Certificate Authority within its organization. This identifier:

• Must be 3-18 characters long.
• Can only include lowercase letters, numbers, underscores ("_"), and hyphens ("-").

Mandatory: Yes.

CA Key Type

The type of key the new Certificate Authority will use to sign certificates.

Mandatory: Yes.

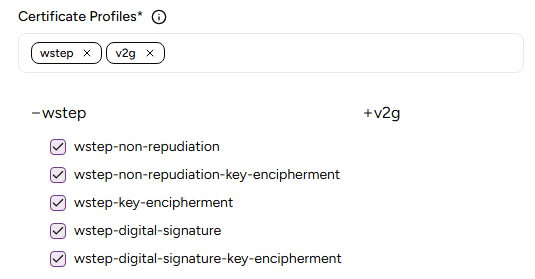

Certificate Profiles

The profiles the Certificate Authority will support for issuing certificates. See the Certificate profiles reference for a description of each profile.

Mandatory: Select at least one profile.

Expiration Date

The expiration date for the certificate signing certificate of the Certificate Authority.

Mandatory: No. This value defaults to the following dates.

Attributes

The value of each attribute in the Distinguished Name (DN) of the Certificate Authority certificate.

Mandatory: Set at least the CN attribute of the Distinguished Name.

Auditors

Enter the names of the users who will have auditor permission on the Certificate Authority. For each name, you can:

• Enter a user name already assigned to another CA so that the user will have permissions on different CAs.
• Enter a new user.

Mandatory: No. When omitting this value, the Certificate Authority will not have users with only auditing permission.

Administrators

Enter the names of the users who will have administration permission on the Certificate Authority. For each name, you can:

• Enter a user name already assigned to another CA so that the user will have permissions on different CAs.
• Enter a new user.

Mandatory: Yes. Add the name of at least one administrator.
