See below for instructions on configuring and deploying Certificate Manager using the Management Console.

To configure and deploy Certificate Manager with the Management Console

1. Open the following URL in a Web browser.

   https://<machine>/management-console

   Where <machine> is the IP address or domain name of the machine hosting PKI Hub.

2. Log in to the Management Console as a user belonging to a role with Certificate Manager management permissions – for example, the initial admin user.

   See Starting up the Management Console for how to manage users and roles.

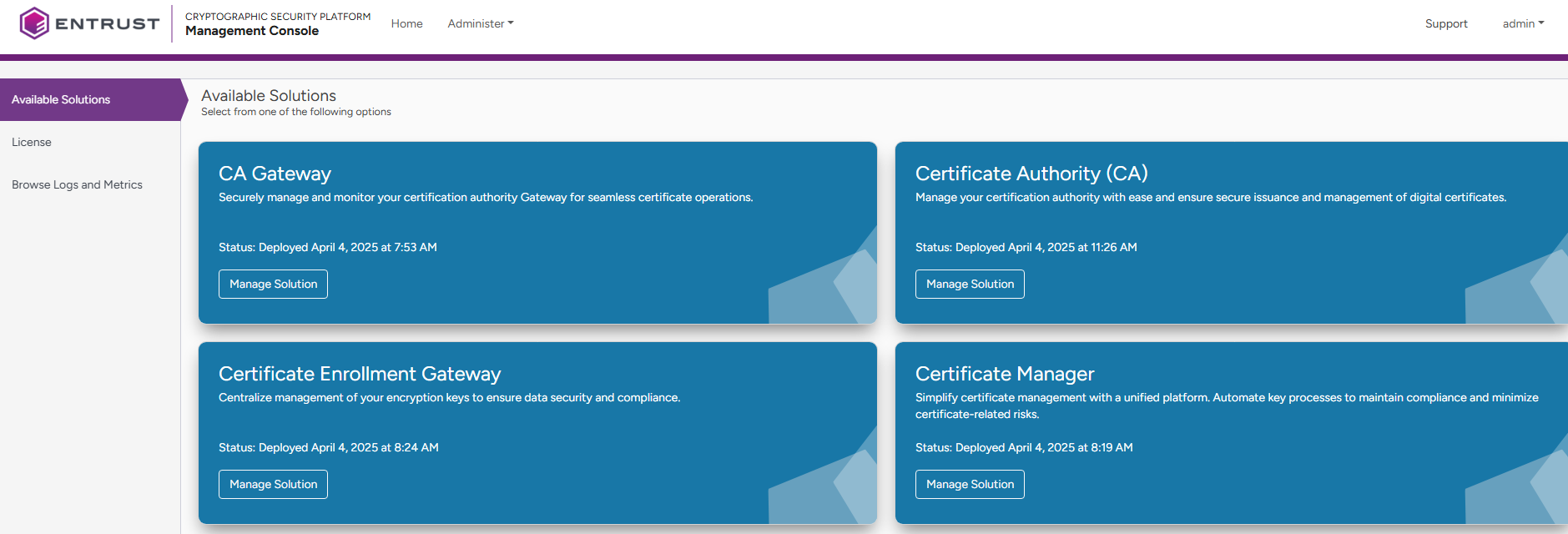

3. In the content pane, click Manage Solution under Certificate Manager.


4. Toggle Enable Advanced Configuration to configure the full set of configuration parameters supported by the solution.



5. Click Next.
6. Configure the solution settings described in the following sections.
   • CM Hostname
   • Discovery Scanner version
   • Initial Administrator Username
   • Initial Administrator Password
   • Initial Administrator Email
   • Name of the PostgreSQL Database
   • Database User Name
   • Database User Password
   • Host of the PostgreSQL database
   • External database port
   • SSLMode for the PostgreSQL external database
   • CA Certificate(s)
7. Click Validate to validate the configured settings.
8. Correct any detected configuration errors until Validate displays no warnings.
9. Click Submit and wait while PKI Hub uploads the configuration and any attached file, such as a P12 file with authentication credentials.
10. Click Deploy.

    Do not forget to also click Deploy after each update of the configuration or the license file.

CM Hostname

The base hostname of the Kubernetes Ingress routing to the application.

Mandatory: Yes.

Discovery Scanner version

The version identifier communicated to the Discovery Scanner instances.

Mandatory: When integrating Discovery Scanner.

Initial Administrator Username

The username of the initial administrator.

Mandatory: Yes.

Initial Administrator Password

A temporary password for the initial administrator. Ensure that this temporary password does not include special characters such as '#', '!', or '*'.

Mandatory: Yes.

Initial Administrator Email

The email address of the initial administrator.

Mandatory: Yes.

Name of the PostgreSQL Database

The name of an external PostgreSQL database meeting the Database requirements. The Certificate Manager deployment process will automatically create all the required tables.

Mandatory: Yes.

Database User Name

The user name of the PostgreSQL database.

Mandatory: Yes.

Database User Password

The user password of the external PostgreSQL database.

If this password changes in the external database.

1. Update the value also on this field of the Management Console.
2. Click Submit and wait for the new configuration to apply.
3. Click Deploy.
4. Open a command line session on any installation node.
5. Run the following command.
   sudo kubectl get deploy -o name -n certhub | xargs -n1 sudo kubectl rollout restart -n certhub

Mandatory: Yes.

Host of the PostgreSQL database

The IP address or Fully Qualified Domain Name (FQDN) of the database host.

Mandatory: Yes.

External database port

The connection port with the external PostgreSQL database.

Mandatory: Yes.

SSLMode for the PostgreSQL external database

The SSL mode for connecting with the external PostgreSQL database. Supported values are:

• require
• verify-ca
• verify-full

See https://www.postgresql.org/docs/current/libpq-ssl.html for a description of each mode.

Mandatory: Yes.

CA Certificate(s)

The CA certificate for validating the database SSL certificate. Click Select Files to import a file containing this certificate in PEM format and Base64 encoding.

Mandatory:  When the SSLMode for the PostgreSQL external database value is one of the following.

• verify-ca
• verify-full
