This section describes the workflow that occurs in the Cryptographic Security Platform Vault for Cloud Keys when you use BYOK for Azure.

Azure keys can be hardware-protected or software-protected.

Hardware-protected key

See below for managing hardware-protected keys.

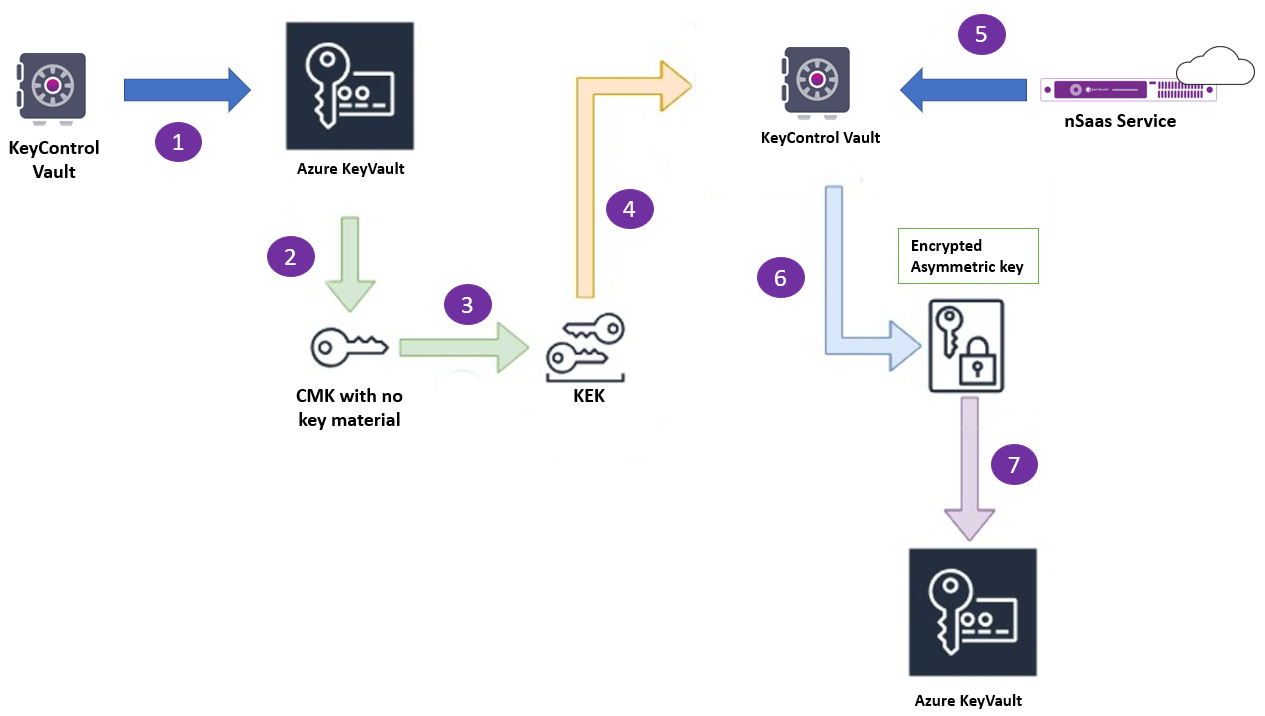

To manage hardware-protected keys

1. Create a Cloud Key with key material in the Cryptographic Security Platform Vault for Cloud Keys.

   If you configure an HSM, the HSM generates the key and wraps it with a root key.

2. A Key Encryption Key (KEK) is created in Azure Key Vault in your chosen key vault.

3. Download the RSA-2048 wrapping public key and the KEK ID from Azure Key Vault.

4. Import the RSA-2048 wrapping public key and the KEK ID into the Cryptographic Security Platform Vault for Cloud Keys.

5. Use the imported wrapping key to wrap the asymmetric key and create a blob.

6. Import the asymmetric key into Azure Key Vault using the KEK ID from Step 3.

Software-protected Key

See below for managing software-protected keys.

To manage software-protected keys

1. Create a Cloud Key with key material in the Cryptographic Security Platform Vault for Cloud Keys.

   If an HSM is configured, the HSM generates the key and wraps it with a root key, then stores it in the Cryptographic Security Platform Vault for Cloud Keys.

2. The asymmetric key is imported into Azure Key Vault.

   SSL/TLS protects communication between Cryptographic Security Platform Vault for Cloud Keys and Azure.
