With the Grafana Loki Dashboard, users can browse and export logs of the Cryptographic Security Platform system and the deployed solutions.

To browse and export logs with the Grafana Loki Dashboard

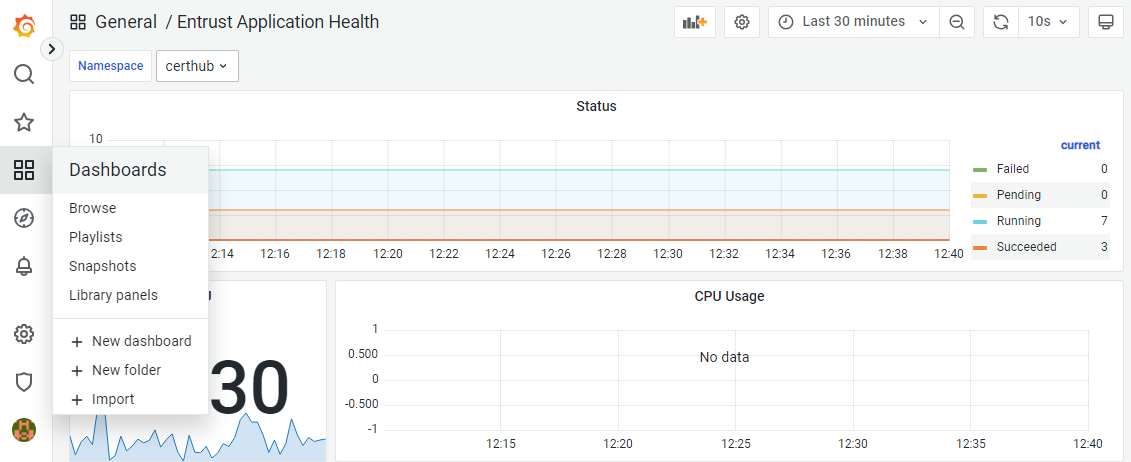

  1. In the left sidebar of the Grafana portal, click the four squares icon and select Dashboards.

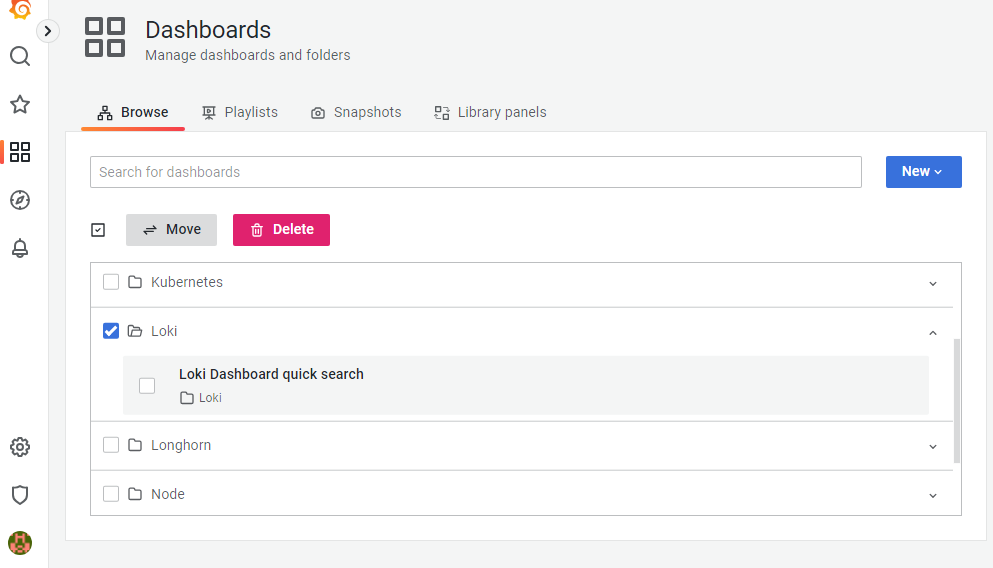

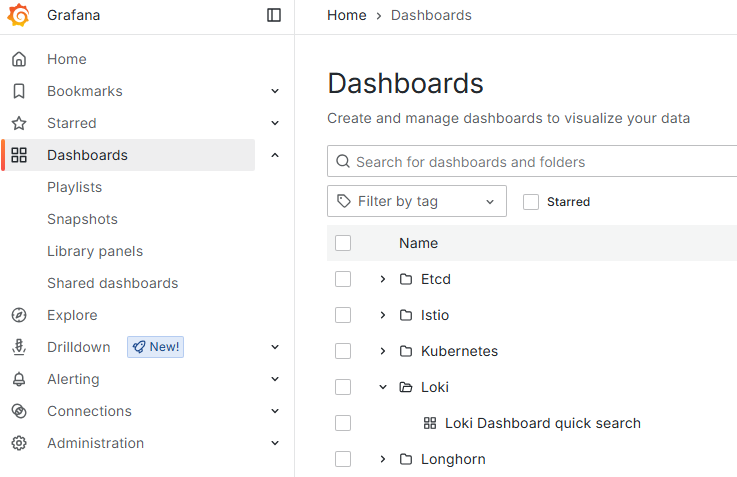

  2. In the Dashboards page, select Loki > Loki Dashboard quick search.

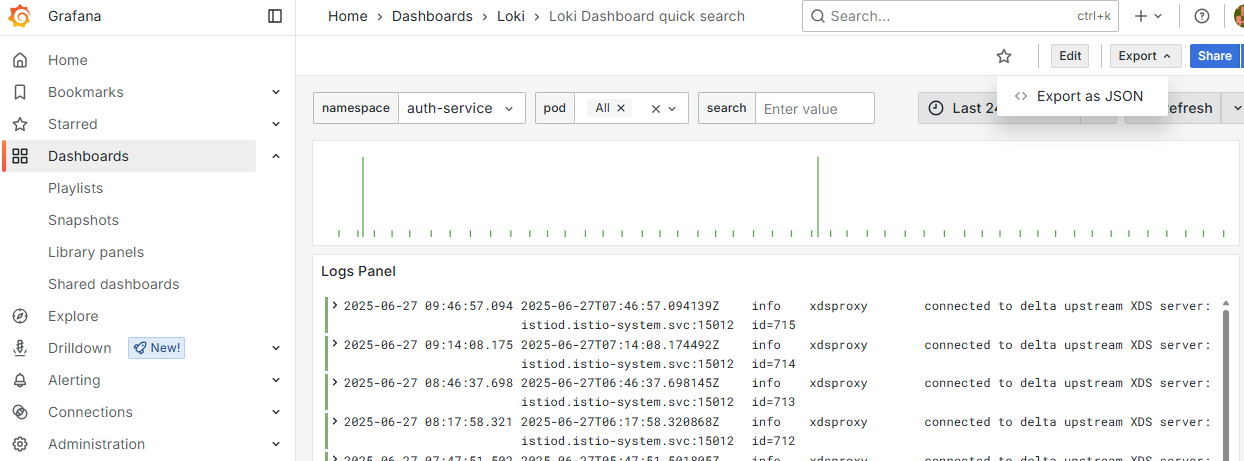

  3. Define a log query with the menu options.

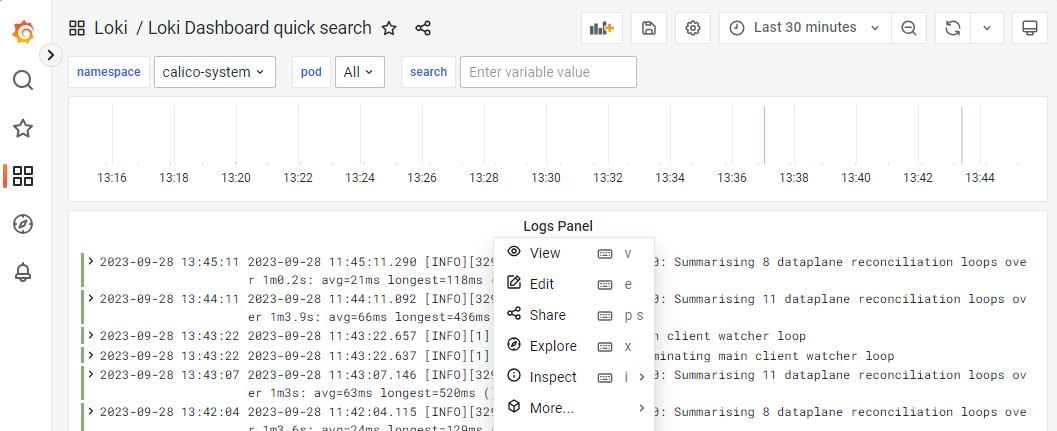

  4. In the Logs Panel drop-down list, select Inspect.

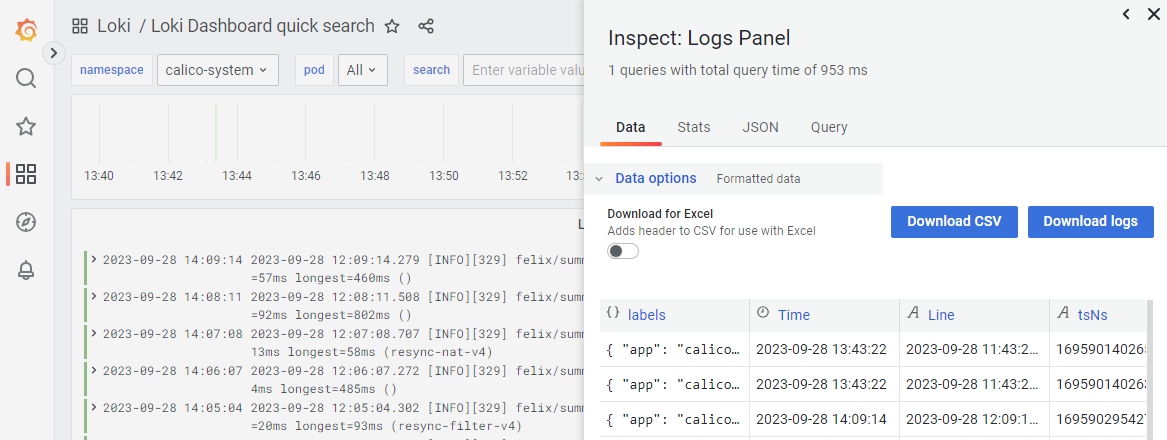

  5. In the Inspect: Logs Panel sidebar, select the Data tab.


  6. In the Data tab, click:
    • Download CSV to download the logs into a CSV file.
    • Data options > Download for Excel and Download CSV to download the logs into an Excel-compatible CSV file.
    • Download logs to download the raw logs into a text file.

namespace

Click namespace in the top-right menu and select the namespace for querying logs.

Namespace

Monitored service

calico-system

The Calico networking service.

csf-docker-registry

The Docker registry.

longhorn-system

The Longhorn system.

istio-system

The Istio system.

logging

The Log Forwarder solution.

csf-monitoring

The Prometheus service.

csf-logs

The Loki service.

kube-system

The K3s system.

cm

The Certificate Manager solution

pkihub-v<YYYYMMDDhhmm>

The Certificate Authority solution, version <YYYYMMDDhhmm>.

cagw

The CA Gateway solution.

ceg

The Certificate Enrollment Gateway solution.

tsa

The Entrust Timestamping Authority solution.

eva

The Validation Authority solution.

management-console

The web console for deploying and managing Entrust solutions.

tigera-operator

The Tigera Operator for deploying the Calico networking service.

auth-service

The authentication system for Cryptographic Security Platform administrators.

solution-manager

 The service for managing the deployed Entrust solutions.

pod

Click pod in the top-right menu and select the running pods for which to browse logs.

Type a custom log query in the search search box.

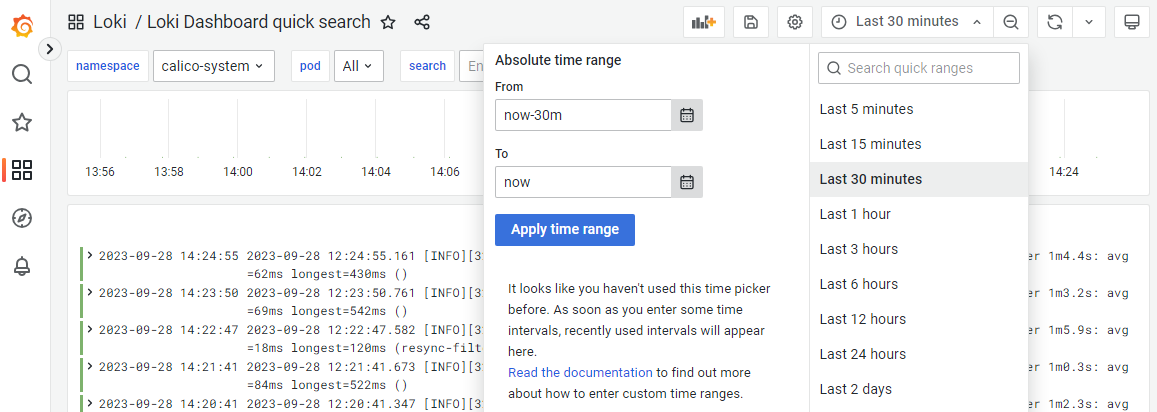

Time range

Click the clock icon in the top right menu and select the time range for querying logs.
